The Compound Metal Wallboard

The Compound Metal Wallboard

The Compound Metal Wallboard

Product features
Transportation and installation


Materials

  • ✈Panel: The basic material is a 0.5--1.0mm hot melt galvanized steel(error not more than 20um). The thickness of front paint is not less than 20um, while the back paint is not less than 12um. And the plate edge is a U shape slot formed by full-automatic hydraulic pressure.
  • ✈Embedded Gypsum Boardworld-class brand12mm gypsum board of the .
  • ✈FastenerThere will be an H shape fastener, which made by a hot melting galvanized steel of length not less than 50mm and thickness greater than or equal to 1.00mm , to fix the two adjacent panel together.
  • ✈Batten: A U-shape decorative strip formed with the same materials of baking finish steel panel is arranged between the adjacent panels.
  • ✈Internal Corner ConnectorInternal corner edge connector is a model customized U shape device formed by aluminum hydraulic pressure and surface treatment, with a thickness of greater than or equal to 1.2mm and the size of 30x15x20xL3000mm.

  • ✈External Corner ConnectorExternal corner edge connector is a model customized L shape device formed by aluminum, with a thickness greater than or equal to 1.2mm and the size of 30 x 30x3000mm, combining with an X shape device to perfect match without using any glue. It is easy and repeatable for disassembly or assembly.


Qualifications

  • ✈The Compound Metal Wall Board has passed the A-level testing of  GB8624-2012 authorized by the  “National Center for Quality Supervision and Testing of Fire Building Material”.

  • ✈The Compound Metal Wall Board has passed the 2-hour fire-resistant testing of  GB/T9978-2008 authorized by the “National Center for Quality Supervision and Testing of Fire Building Material”.

  • ✈The Compound Metal Wall Board has passed the testing of formaldehyde emission of  GB18584-2001,with formaldehyde emission lower than 0 .5mg/L.

  • ✈The compound metal wall board passed the testing of sound insulation noise reduction of GB50121-2005, with the frequency of 500Hz sound insulation up to 45dB.


Practicability

  • ✈Wide choice for the thickness of the wall,enlarging the usage area of the building because of its small load and light character.

  • ✈Meets the requirements of modern, industrial and technological building decoration in different places with its advantages of sturdy, shock-proof, fireproofing, dust-proof, damp-proof, anti-acid and alkali and salt spray resistance.

  • ✈Interlayer can be built freely in the wall according to the demands, making the tubing and wiring easily fixed or maintained.

  • ✈With the wallboard, any space can have a flexible division, which is easy to maintain and rebuild, reaching a rate of utilization of 90% and greatly save the cost.

  • ✈Not only can meet the environmental protection and resource-saving standards, but also can move in and work there immediately once finished the construction -- Beautiful, Clean and Comfortable.

  • ✈Meet the international standards of the partition decoration materials such as thermal insulation, sound insulation, sound absorption and anti-knock.

  • ✈The comprehensive cost is fairly reasonable.


Applications

  • ✈Office: The computer center from the financial institution of National Ministries and Commissions, Government Agency, Bank, Insurance, Security and Top-grade Office Buildings.

  • ✈Public placeHospital, School, Scientific research institutions, Civil aviation and Metro.

  • ✈Industrial building: Standardization industrial factory; Factory for food, Pharmacy and chemical engineering; Laboratory or R&D center.

  • ✈Commercial space: Convention center, Sports halls, Commercial street, High-end club and Star-rated hotels.

  • ✈Operators: China Telecom, China Mobile, China Unicom, China Railcom and Grid Power Bureau.



Representative Project


Tencent Cloud Computing Data Center in Shenshan Special Zone

  • Areas: About 6000 Square Meters

  • Product: COSNEW Compound Metal Wallboard(QM-101 Grey/QM-101 Ivory White)

  • Application:Walls of the Engine Room & Corridor

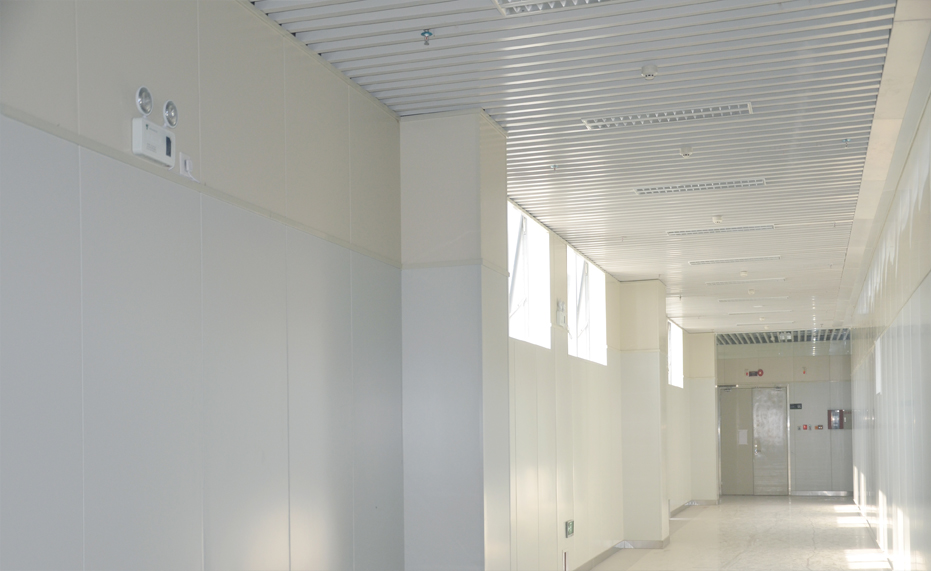

Image of COSNEW Wallboard(Installation Completed)

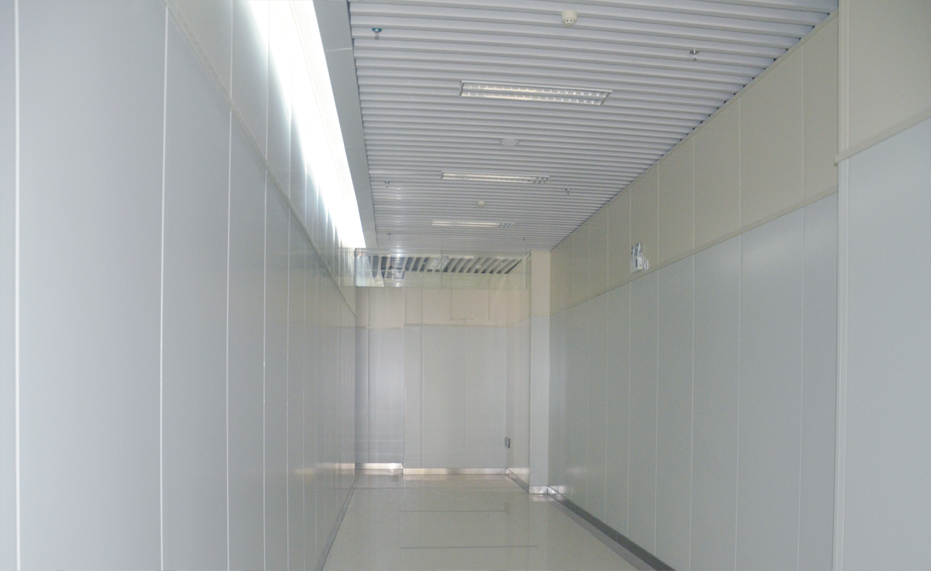

Image of COSNEW Wallboard(Installation Completed)
