Metal Micropore Sound Absorption Ceiling

Metal Micropore Sound Absorption Ceiling

Metal Micropore Sound Absorption Ceiling

    • Conventional Color: Creamy white
    • Conventional Type: QM-201
    • Conventional Specification: 600mm×600mm
    • 600mm×1200mm
    • 300mm×1200mm



Product features
Transportation and installation

Material

  • Aluminum Micropore sound absorption ceiling is made of 1001H24/3003H24 national standard aluminum hot-rolled aluminum alloy which meets the standard of GB3880. The thickness varies from 0.7mm to 1.0mm with an erro less than 20um.Coating thickness more than 60um in milky white. Once Compression Forming to make sure the panel flat and smooth enough and guarantee a better performance.The height of the flanging is 22mm.

  • Filling: Use the world-class sound-absorbing cotton.
  • Hardware Equipments:Hangers of the Ceiling shall use hot-dip galvanized screw of diameter 6 cm; Main channel should use hot-dip metal triangle channel of size 30mm*30mm; Diameter of the main material shall be φ1.8mm or φ2.2mm, while the center distance between holes shall be 5mm×5mm,perforating rate is 18% with high-quality sound-absorption non-woven fabric sticked in the back.We provide specialized hanging system with: galvanized 38 main channel (section size: 12*38*1.0mm),hanger for 38 main channel, triangle galvanized channel (section size:26×26×26×0.45mm),  triangle hanger . The distance between the hanger shall be less than 1200mm to make sure every panel could install or uninstall individually. Tolerance of the panel: width:0~-0.1mm, the deviation angle between the panel is 0~±0.5.

Parameters

  • Good performance of fire proof,anti-corrosion,anti-moist.
  • Adhesive force : Grade 0
  • Hardness of the paint film: > HB
  • Impact endurance resistance level : > 4N/M
  • Acid Resistant:Immersed in 2% hydrochloric acid solution for 24H,ceilings still works good without any changes
  • Alkali Resistant:Immersed in 2% solution for 24H,ceilings still works good without any changes
  • Oil Resistant:Immersed in 2% solution for 24H,ceilings still works good without any changes

Qualifications

  • Passed the Type Test of National Standard GB/T23444-2009.
  • Passed the Grade A2 Type Test of GB8624-2012
  • Passed the GB20247-2006/ISO354:2003 with NRC=0.95 and passed the firs grade inspectation of GB16731-1997.






Representative Projects


Guangdong Pearl River TV Project


  • ✐Product: COSNEW Metal Micropore Sound Absorption Ceilings(QM-201 Milky White)

  • ✐Application: Ceilings of the Machine Room

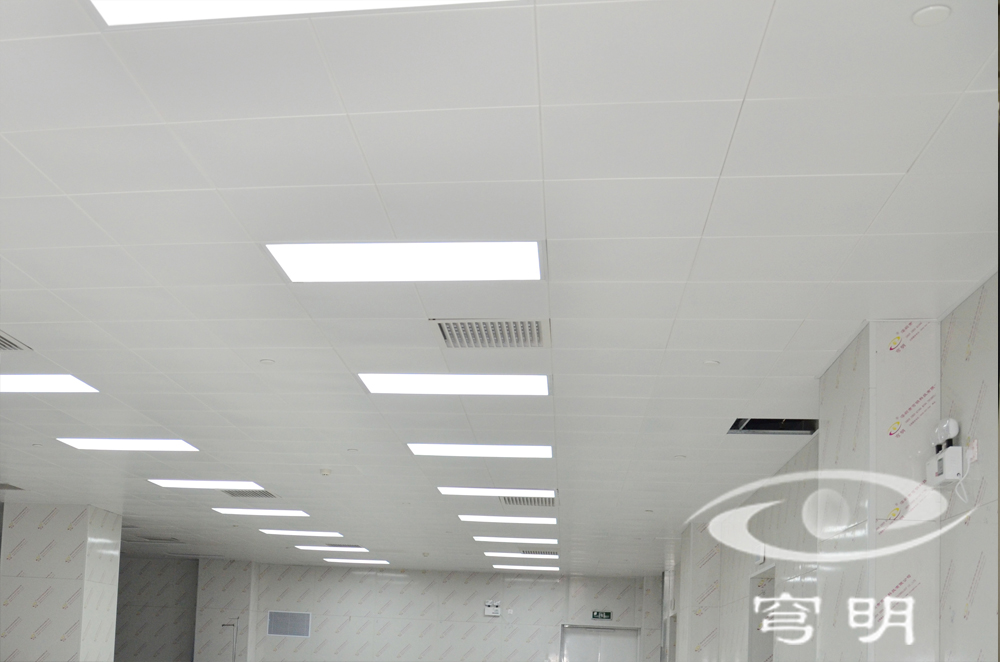

COSNEW Ceilings(Installation Completed)

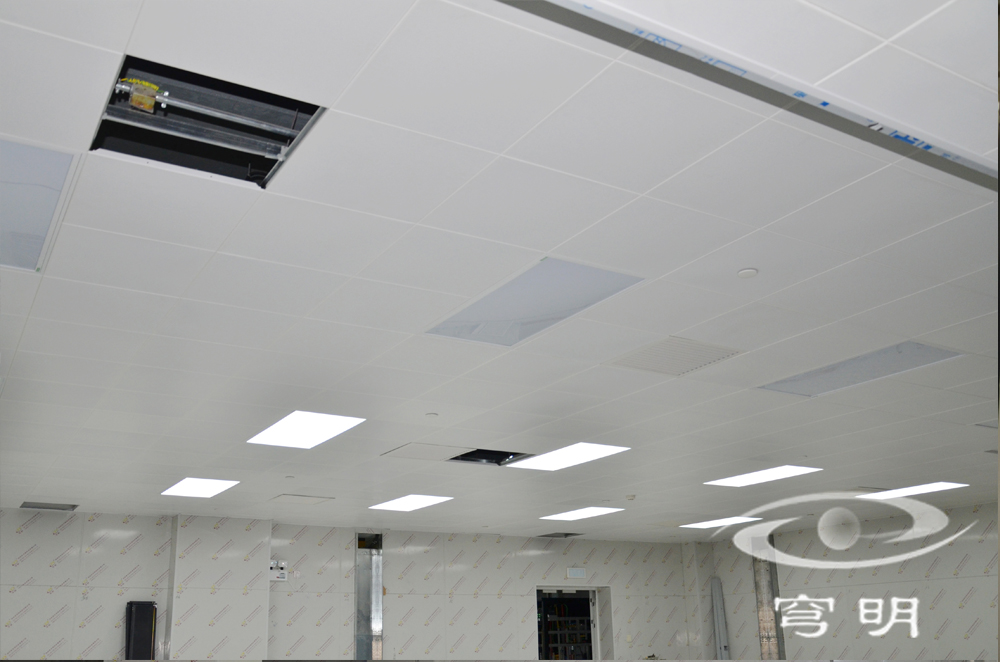

COSNEW Ceilings(Installation Completed)

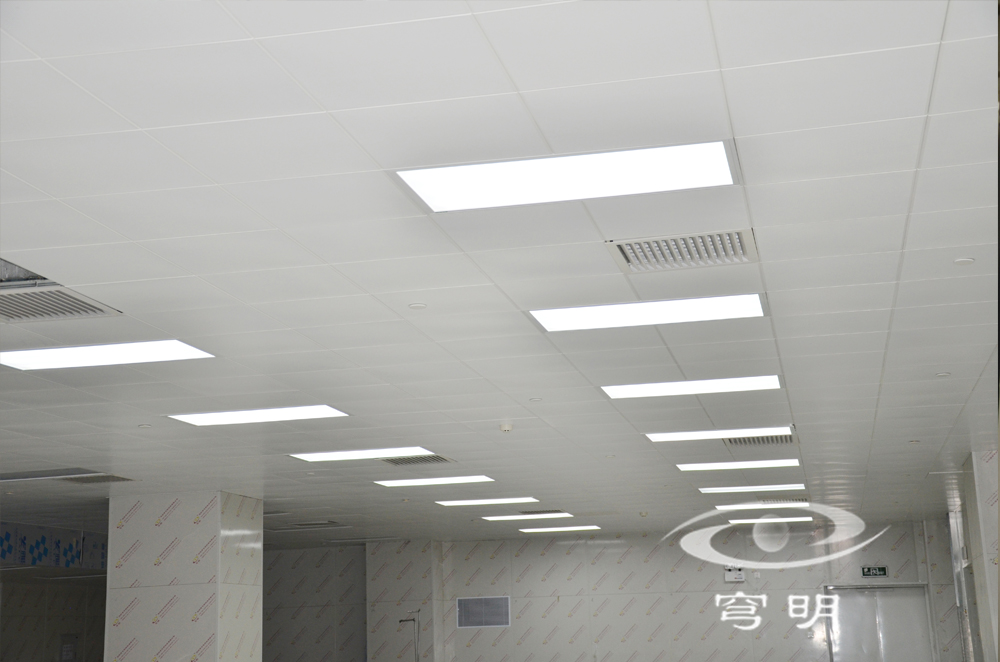

COSNEW Ceilings(Installation Completed)
