All-steel Antistatic Ventilated Floor
All-steel Antistatic Ventilated Floor
-
?General Model:6030
-
?General Size:600mmx600mmx35mm
Installation Guide of COSNEW Floor
Features
-
?It is structure is similar to that of all-steel anti-static raised floor panel,but no foamed cement.The ventilation system is formed by round vent hole.Ventilation panel is used for under floor air conditioning,matching with all-steel raised floor panel.The ventilation rate of the panel is 20.8%-43.8%.
Applications
-
?It is applied to various kinds of places where requirements on ventilation such as computer rooms,communication room,switch room and the place demand cabling and wiring.
-
?Varieties:6.5 type ventilation plate,the adjustable ven tilated plate,9 type ventilation plate,16 type ventilation plate,22 type ventilation plate,Ovaloid ventilation plate,Purification workshop steel airflow floor.
Paremeters
|
Type |
Size |
Concentrated load |
Uniform load??N/?O?? |
Ultimate load??N?? |
||
|
LB |
N |
Kg |
||||
|
6010 |
600x600x30 |
??440 |
??1960 |
??200 |
??9720 |
??5880 |
|
6011 |
600x600x35 |
??700 |
??3115 |
??318 |
??12500 |
??8850 |
|
6012 |
600x600x35 |
??800 |
??3560 |
??363 |
??17000 |
??10700 |
|
6013 |
600x600x35 |
??1000 |
??4450 |
??454 |
??23000 |
??13350 |
|
6014 |
600x600x35 |
??1250 |
??5563 |
??568 |
??33000 |
??16680 |
|
6015 |
600x600x35 |
??1500 |
??6674 |
??681 |
??43000 |
??20000 |
|
6016 |
600x600x35 |
??2000 |
??8900 |
??909 |
??63000 |
??26700 |
|
6017 |
600x600x35 |
??700 |
??3115 |
??318 |
??12500 |
??8850 |
|
6018 |
600x600x35 |
??800 |
??3560 |
??363 |
??17000 |
??10700 |
|
6019 |
600x600x35 |
??1000 |
??4450 |
??454 |
??23000 |
??13350 |
|
6020 |
600x600x35 |
??1250 |
??5563 |
??568 |
??33000 |
??16680 |
|
6021 |
600x600x35 |
??1500 |
??6674 |
??681 |
??43000 |
??20000 |
|
6022 |
600x600x35 |
??1750 |
??7785 |
??795 |
??52000 |
??23300 |
|
6023 |
600x600x35 |
??2000 |
??8900 |
??909 |
??63000 |
??26700 |
Representative Project
Bijie Police Bureau Machine Room
-
?Product:COSNEW All-steel Anti-static Adjustable Floor(6010)
-
?Application:Floor Decoration of Machine Room

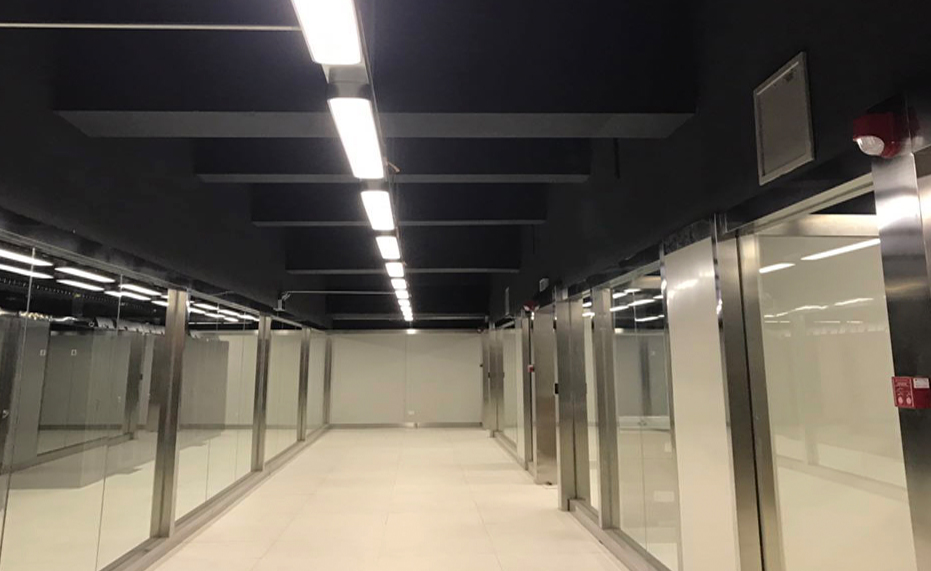

Image of COSNEW floor (Installation Completed)

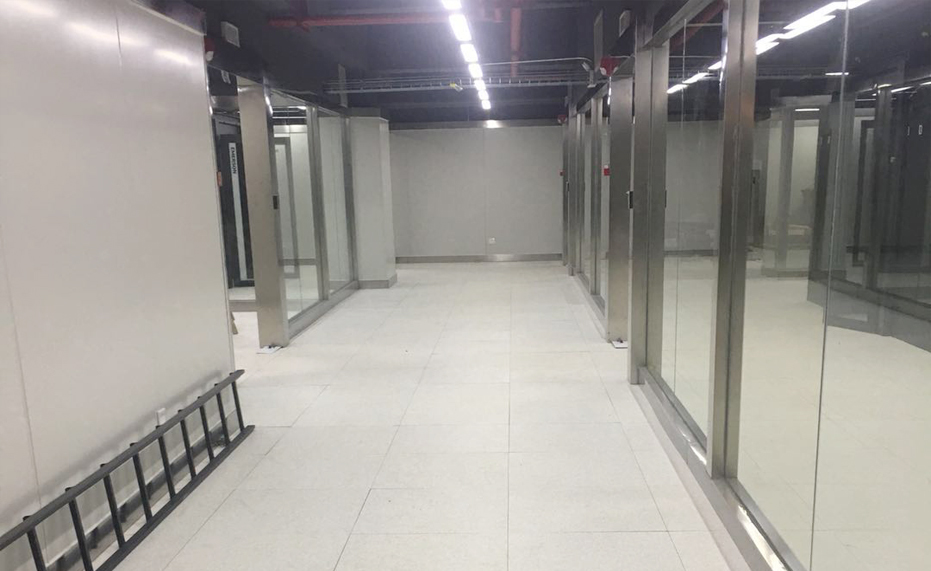

Image of COSNEW floor (Installation Completed)

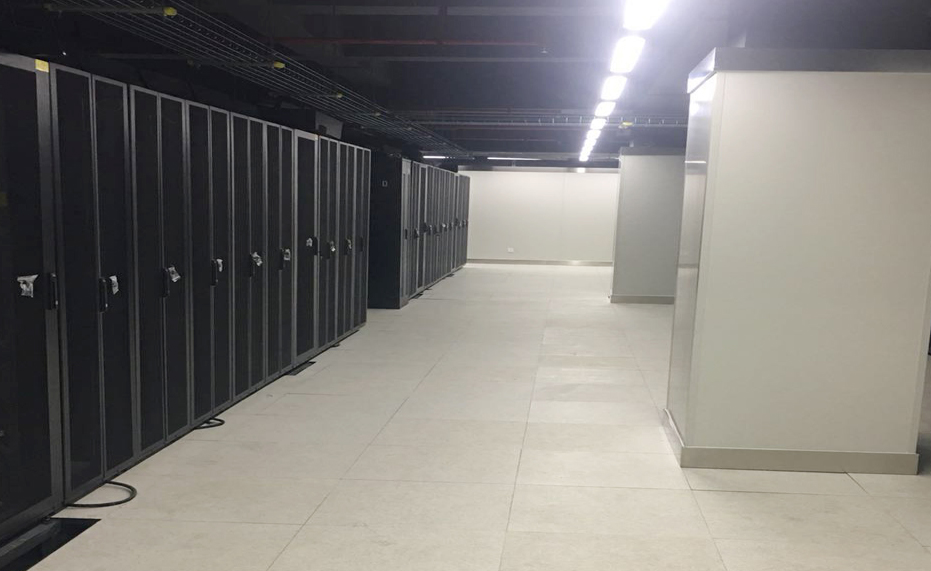

Image of COSNEW floor (Installation Completed)
