Compound Wallboard

Metal Composite Wall Panels

About COSNEW Compound Metal Wallboard

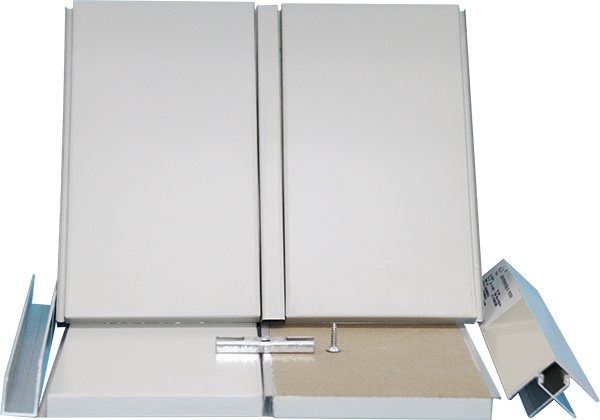

Image of COSNEW Compound Metal Wallboard (Grey)


General Information



  • ? General Model:QM-101/QM-102

  • ? General Color:QM-101 Grey/QM-102 Ivory White

  • ?General Width:900mm/1200mm

  • ?General Size:1200mm*3000mm/1200mm*2850mm/1200mm*2650mm



Qualifications



  • ?Grade A of GB8624-2012 Classfication for burning behavior of building materials and product.

  • ?Resist fire for 120 minutes of GB/T9978-2008 Fire resistant tests-Elements of building construction

  • ?Formaldehyde emission lower to 0.5mg/L,passed the test of GB18584-2001 standard.

  • ?Sound insulation lower to 45dB of GB50121-2005 The graduation and test method for airbone sound insulating properties of windows and doors.


Practicality



  • ?Has a free choice for the thickness of the wall and can enlarge the usage area of the building because of its small load and light character.

  • ?It meets the requirements of modern,industrial and technological building decoration in different places with its advantages of sturdy,shock-proof,fireproof,dustproof,acid-alkali resistant

  • ?Interlayer can be built freely in the wall according to the demands,making the tubing and wiring easily fixed or maintained.

  • ?With the wallboard,any space can have a flexible division,which is easy to maintain and rebuild,reaching a rate of utilization of 90% and greatlty save the cost.

  • ?Not only can meet the need of environmental protection and resource-saving standards,but also can move and work there immediately, once finished the construction--beautiful,clean and comfortable.

  • ?It meets the international standards of the partition decoration materials such as Thermal Insulation, Sound Insulation,Sound Absorption  and Anti-knock.

  • ?The comprehensive cost is fairly reasonable.


Applications



  • ?Office Buildings: National Departments,Government Institutions,Computer Centers of the financial institution such as Banks, Insurance Departments, and upper-end office buildings.

  • ?Public places: Hospitals, Schools, Science Research Institutions, Airport,Subway etc.

  • ?Industrial Buidings: Standard industrial factory, Factory for food,medicine,chemistry;Professional laboratory and research centers.

  • ?Commercial Place: Exihibition Center,Stadium,Commercial Street,high-end clubs, star-rated hotels.

  • ?Operators:China Telecom,China Mobile,China Unicom,China Railcom and Grid Power Bureau.


Representative Project



  • ? Project of An Electric Power Company

  • ?Products:COSNEW Compound Wallboard (QM-101 Grey)

  • ?Applications: Decoration of the walll of the data center

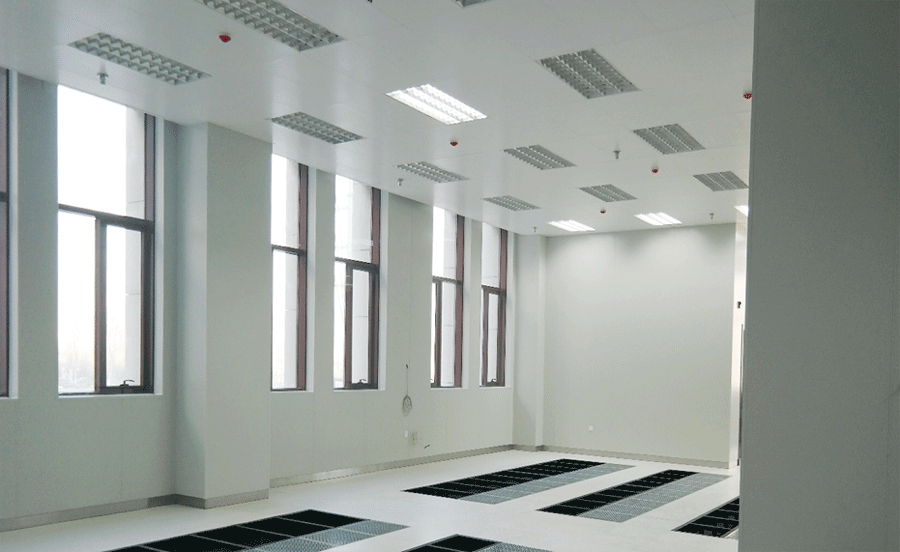

Image of  the wallboard(installation completed)
