METAL CEILING

Metal Composite Wall Panels

Metal Ceilings

Aluminum Micropore sound absorption ceiling is made of 1001H24/3003H24 national standard aluminum hot-rolled aluminum alloy which meets the standard of GB3880. The thickness varies from 0.7mm to 1.0mm with an erro less than 20um.Coating thickness more than 60um in milky white. Once Compression Forming to make sure the panel flat and smooth enough and guarantee a better performance.The height of the flanging is 22mm
Filling: Use the world-class sound-absorbing cotton.
Hardware Equipments:Hangers of the Ceiling shall use hot-dip galvanized screw of diameter 6 cm; Main channel should use hot-dip metal triangle channel of size 30mm*30mm; Diameter of the main material shall be 1.8mm or 2.2mm, while the center distance between holes shall be 5mmperforating rate is 18% with high-quality sound-absorption non-woven fabric sticked in the back.We provide specialized hanging system with: galvanized 38 main channel (section size: 12*38*1.0mm),hanger for 38 main channel, triangle galvanized channel , triangle hanger . The distance between the hanger shall be less than 1200mm to make sure every panel could install or uninstall individually. Tolerance of the panel: width:0~-0.1mm, the deviation angle between the panel is 0-0.5.

Impact endurance resistance level : > 4N/M

Acid Resistant:Immersed in hydrochloric acid solution for 24H,ceilings still works good without any changes

Alkali Resistant:Immersed in solution for 24H,ceilings still works good without any changes

Oil Resistant:Immersed in solution for 24H,ceilings still works good without any changes

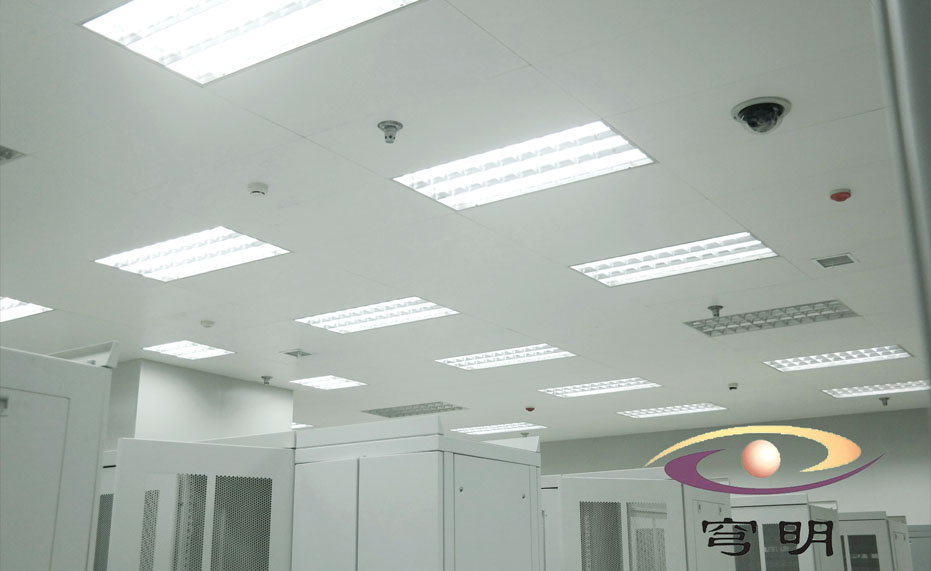

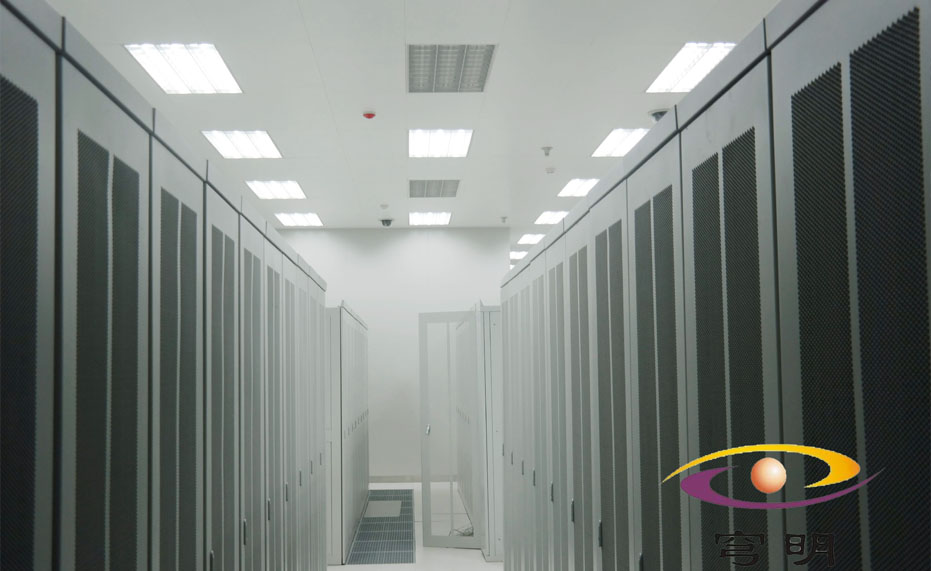

Image of COSNEW Metal Ceiling
